GROUP SCHUMACHER Planetary Knife Drives
Sensor Technology for Knife Drives - GROUP SCHUMACHER Planetary Knife Drives
Sensor technology integrated into knife drives monitors the cutting system in real time to improve harvesting efficiency. It detects changes in crop density and automatically adjusts the forward speed to maintain a consistent material flow. The system can also identify impacts with obstacles, helping detect potential damage early and supporting smoother machine operation.


Got any Question or Inquiry?  Contact us!

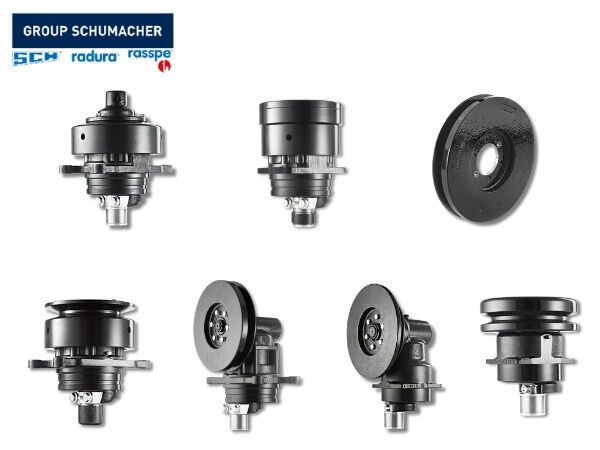

The Pro-Drive Modular series
Made to meet the highest standards, Pro-Drive is the gearbox that powers super wide headers, both rigid and flexible.
It is available in two versions that transmit the power either vertically or horizontally into the knife.



For hydro motor powered knives Pro-Drive 85MH (AS)
This knife drive connects to a hydraulic system.

[caption id="attachment_17013" align="alignnone" width="300"] GROUP SCHUMACHER Planetary Knife Drives - For hydro motor powered knives Pro-Drive 85MH (AS)[/caption]

For cardan shaft powered drivesPro-Drive 85MH (AS)
This flange-mounted drive was developed for headers and machines that have a cardan shaft to drive the cutter bar.

[caption id="attachment_17005" align="alignnone" width="300"] GROUP SCHUMACHER Planetary Knife Drives For cardan shaft powered drives
Pro-Drive 85MH (AS)[/caption]

For belt driven knives Pro-Drive 85MH (RS)
This drive transmits the power to the cutting system via a horizontal pulley.

[caption id="attachment_17003" align="alignnone" width="300"] GROUP SCHUMACHER Planetary Knife Drives For belt driven knives
Pro-Drive 85MH (RS)[/caption]

For belt driven knives Pro-Drive 85MV (RS)
This drive transmits the power to the cutting system via a vertical pulley which eliminates a change in direction of the power flow.

[caption id="attachment_17001" align="alignnone" width="300"] GROUP SCHUMACHER Planetary Knife Drives For belt driven knives
Pro-Drive 85MV (RS)[/caption]

Pro-Drive Economy series
These drives are made for applications that require less power such as combining canola or sun flower. The power is transmitted vertically or horizontally.


For belt driven knives Pro-Drive 80EH (RS)
This compact and light-weight drive unit has a horizontal pulley for direct power transmission to the cutting system.

[caption id="attachment_16999" align="alignnone" width="300"] GROUP SCHUMACHER Planetary Knife Drives For belt driven knives
Pro-Drive 80EH (RS)[/caption]

For belt driven knives Pro-Drive 80EV (RS)
This compact and light-weight drive unit has a vertical pulley and an integral angular gearbox which eliminates a change in direction of the power flow.

[caption id="attachment_16993" align="alignnone" width="300"] GROUP SCHUMACHER Planetary Knife Drives For belt driven knives
Pro-Drive 80EV (RS)[/caption]





Standard pulleys

Standard pulleys
A large range of pulleys is available in different sizes (7-9 inch diameters) and specifications for the Pro-Drive 85MV (RS) and Pro-Drive 80EV (RS) knife drives. All pulleys have the SPC profile (DIN 7753) as standard. Further pulleys for belt pairs and poly belts are available on request.

[caption id="attachment_17024" align="alignnone" width="300"] GROUP SCHUMACHER Planetary Knife Drives - STANDARD PULLEYS[/caption]
